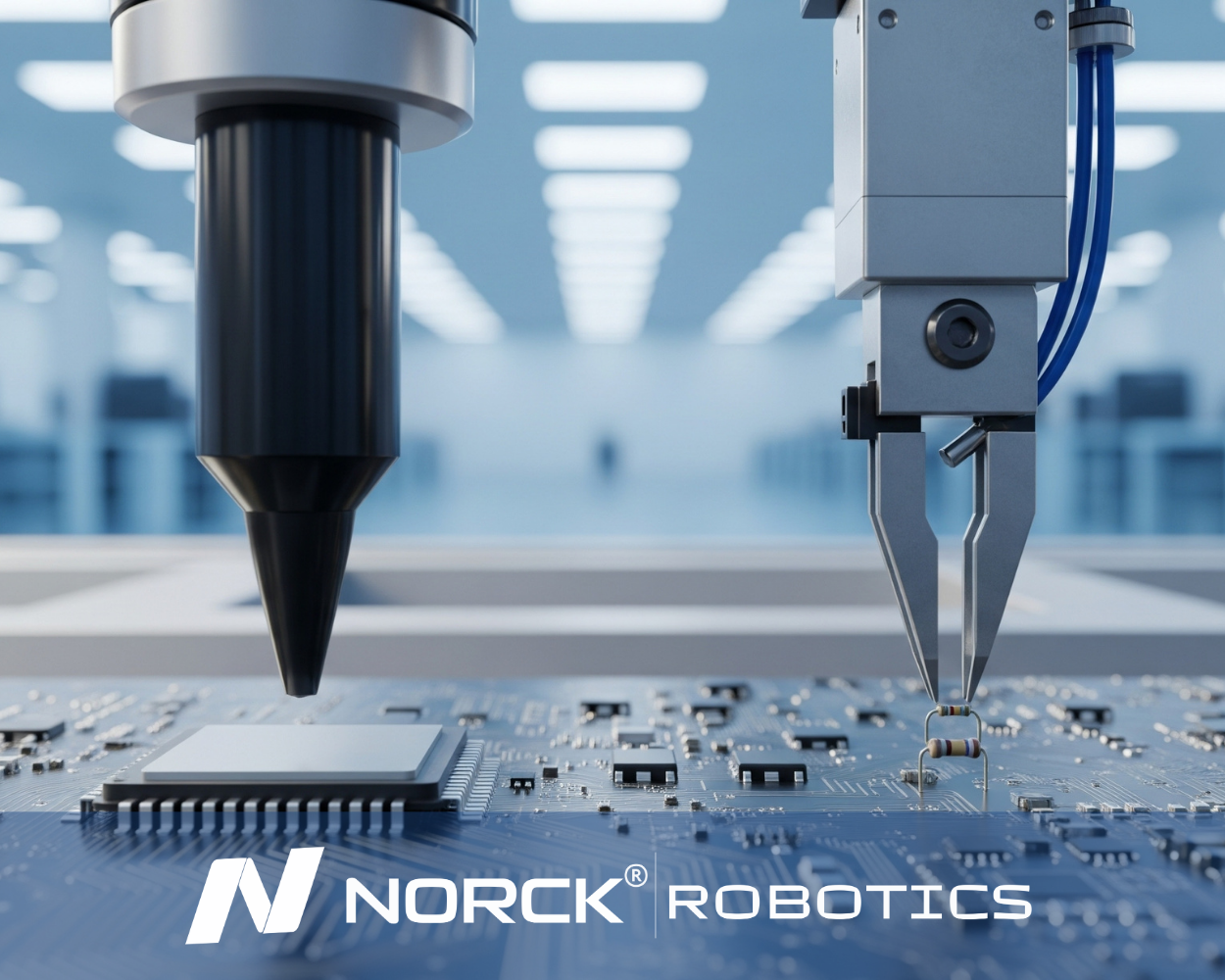

Vacuum Nozzles / Micro-Grippers

Vacuum Nozzles / Micro-Grippers are precision handling components designed to pick, hold, and place small, delicate, or lightweight parts using vacuum force or micro-mechanical gripping mechanisms. They are essential in high-speed automation and robotics applications where accuracy, cleanliness, and gentle handling are critical.

• Vacuum nozzles use controlled negative pressure to securely lift and transport components without mechanical clamping.

• Micro-grippers use miniature jaws, compliant mechanisms, or soft gripping surfaces to handle tiny or fragile parts with high precision.


Both solutions are engineered for micron-level positioning accuracy and reliable operation in clean and controlled environments.

• Aligning Gripper: Small electronic components such as microchips, resistors, and capacitors are so fragile that they risk being damaged during regular handling. Custom grippers such as vacuum cleaner nozzle and micro-grippers ensure these small parts are picked up and placed properly.
• Gentle Gripping: Small electronic components need gentle but firm gripping due to their fragility. Vacuum Nozzles hold the component firmly with suction without applying pressure to damage it. Similarly, Micro-Grippers offer an excellent grasp that helps in holding tiny objects without crushing, bending, or marring them.
• Versatility: Vacuum Nozzles and Micro-Grippers can adapt to various shapes and sizes, making them suitable for multitasking. Put another way, the vacuum nozzle might deal with items of different geometries, while micro-grippers handle the smallest components with pinpoint accuracy.
• Increased Efficiency: The specialized grippers will ensure faster pick-and-placement with fewer interruptions. The vacuum nozzles attempt to grab quickly, while the micro-grippers manipulate with high precision-killing two birds with one stone to accelerate the assembly of tiny components and reduce errors.
• Contamination Risk Reduction: During electronic manufacture, contamination with oils, dust, or debris might harm token-sensitive components. These particular grippers help to reduce that risk by making the handling process cleaner, which is essential for fine-quality electronics assembly.

Vacuum nozzles and micro-grippers are very special pair of grippers that one tiny electronic component must be handled with precision, with gentleness, and with flexibility.

Designed with high precision, they must securely grab these tiny delicate parts without damaging them and soiling them for greater efficiency and quality in the assembly. These specialized grippers increase production productivity while maintaining the integrity of sensitive electronic components either in a high-speed line or with delicate handling.

• Suction: A Vacuum Nozzle lifts the object by means of that suction. In a vacuum of yes, it secures the object when air is drawn through the nozzle upon bringing it near a component. Thus, even small and delicate parts can be handled very gently and precisely.
• Adaptable to Different Shapes: The design of Vacuum Nozzles does make them capable of handling components with various shapes and sizes; hence, they are highly adaptable for different applications in pick-and-place operations. The gripping ensured by the vacuum suction remains secured regardless of the part's geometry.
• Quick and Efficient: Vacuum Nozzles are perfect for high-speed pick-and-place operations since they can grab and release the components in the shortest possible time. The suction technique permits fast tool changes, thereby reducing cycle time and increasing the overall productivity of any setup.
• No Physical Contact: Hence, the risks of contamination and damage are reduced-an advantage that gains more prominence when the items being handled involve sensitive or delicate attachments, such as miniature electronics.
• Customized: These nozzle designs are adaptable for specialized operation, ensuring that the best gripping geometry is in place for any component range. Vacuum nozzle modification allows handling of any size, from a fragile microchip to large mechanical parts.

The Vacuum Nozzle creates suction to grab components with firm holding power and is hence very suitable for pick-and-place operations. A vacuum holding the object in-place is created through the nozzle by drawing in air, with no object direct contact. This type of gripping is safe due to avoiding unsafe acts and allowing pre-emptive fast and efficient tool changes.

Since the vacuum nozzles can pick up parts of practically any shape and size, generally, the suction is kept gentle or else it might damage or contaminate a part from picking it up. The method basically operates with Micro-Grippers in creating a nearly foolproof and extremely fast mechanism for assembly lines where utmost precision is lacking.

An electrostatic gripper can be considered when handling delicate, thin, or lightweight materials that are sensitive to pressure or contamination. Applications in the electronics, semiconductor, and medical device industries abound where non-contact or the very least minimum force is used for gripping.

They are electrostatic force-based gripping systems and are best suited for handling materials like films, wafers, or paper-type substrates.

In case conventional methods might damage the product surface or the operation happens inside a cleanroom environment, an electrostatic gripper would prove to be more effective than Vacuum Nozzles or Micro-Grippers.

As vacuum nozzles depend on sucking air and micro-grippers on precise mechanical movement, electrostatic grippers have offered a clean, silent, and particle-free alternative.

Depending upon the exact material, its surface sensibility, and precision requirements, a suitable gripping technology would be selected: be it Electrostatic Grippers, Vacuum Nozzles, or Micro-Grippers.

Advantages of Micro-Mechanical or Micro-Pneumatic Grippers:

• High Precision: These micro-grippers are built for manipulating very small and delicate parts, thereby requiring high precision and are perfectly suited for micro assembly involving interconnects, medical devices, and precision instruments.
• Light Handling: Micro-Grippers exert a controlled holding force, thus minimizing damage to fragile parts during pick-and-place operations. The gripping force has its precision, making it suitable for some delicate tasks.
• Compact Design: Their small size allows them to be easily fitted into trays of a smaller automation setup/robotic arm, going well with tight areas and complex lines.
• Versatility: Both mechanical and pneumatic Micro-Grippers can be adjusted to handle materials with various shapes so as to offer the possibility to be used universally.
• Efficient: These grippers make possible fast-speed operation with consistent performance in gripping to increase production yield of the operating unit in precision manufacturing environment.
• Clean Operation: Micro-Grippers and Vacuum Nozzles work well in the clean room with minimizing the risk of contamination, making these fit for use in the semiconductor and biotech industry.

Due to their small size, these grippers easily fit into smaller robotic installations and thus are an advantage in setups constrained by space. Depending on the task it has to perform, the Micro-Gripper can be customized; hence, it offers greater flexibility and can be utilized in a variety of industries.

When combined with vacuum nozzles, the micro-grippers function as an optional focusing gripping mechanism for pick-and-place tasks where speed and accuracy are concurrently required. Such delicate-yet-precise movements are peculiarly created in advanced processes that value quality foremost.

• Precision micro handling is ideal for chips, wafers, and sensitive components using soft contact method or vacuum pick-up.
• Vacuum micro grippers are designed for clean room and static sensitive applications where minimizing contamination is paramount.
• Compact, lightweight critical for fast movement with minimal payload burden in robotic EOAT arrangements.
• Modules nozzle options including interchangeable micro-part handling gripper tips, and vacuum channels to accommodate a wide variety of tasks.
• Norck Robotics technical support expert advisement on selecting parts, system integration and maximizing performance.
