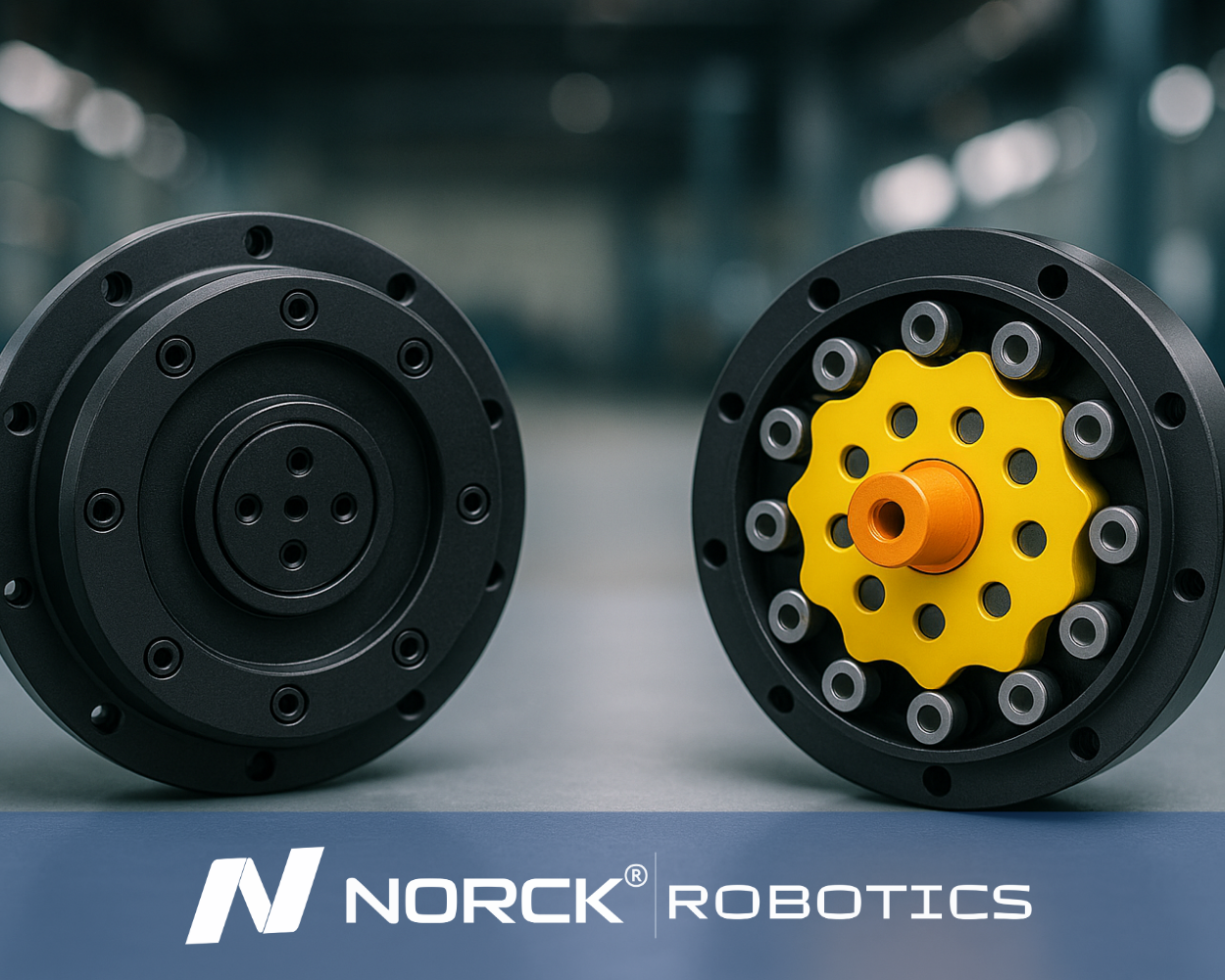

Precision Planetary/Cycloidal Gearboxes

Precision planetary gearboxes consist of a central sun gear, multiple planet gears riding on a carrier, and an internal ring gear. Key attributes include:

• High torque density: Load is shared among several planet gears, allowing up to 20:1 ratios in compact housings while delivering continuous torque up to several hundred Nm.
• Exceptional efficiency (>95 %): Rolling contacts minimize friction; typical losses are under 5 %, reducing heat buildup.
• Low backlash (<1 arc-min): Precision manufacturing and preloaded carriers keep play under one minute of arc, ensuring tight positioning.
• Long service life: Even load distribution and high-grade steels (often carburized or induction-hardened) yield L10 bearing lives beyond 10 000 hours under rated loads.
• Integrated lubrication: Factory-filled synthetic grease or oil bath options support continuous or intermittent duty with minimal maintenance.
• Wide speed range: Rated for input speeds up to 8 000 rpm - ideal for high-speed motor applications without derating.

Cycloidal reducers use an eccentric input cam to drive a lobed plate that meshes with stationary pins, producing output via inverse motion. Their hallmarks are:

• Ultra-high reduction ratios: Single-stage units commonly achieve 30:1 to 100:1; multi-stage designs exceed 10 000:1 without stacking large gear sets.
• Near-zero backlash: The cycloidal motion inherently cancels clearance, delivering true zero-play positioning critical for precision robotics.
• Extreme shock-load capacity: The cam-to-pin contact area handles impact loads up to 500 % of rated torque without damage.
• Robust durability: Few sliding surfaces and a rolling-element bearing on the eccentric cam portends maintenance intervals beyond 20 000 hours.
• High static stiffness: The multiple-lobed rotor and ring pin engagement resist elastic deformation under load, preserving precision under varying forces.
• Efficiency around 90–93 %: Slightly lower than planetary types due to localized sliding, but sufficient for intermittent-duty, high-torque applications.

The choice between planetary and cycloidal gearing influences an actuator’s core metrics:

• Torque & speed envelope: Planetary gearboxes deliver continuous torque at high rpm, while cycloidal units provide exceptional peak torque at low speeds.
• Backlash & repeatability: Although both can achieve under 1 arc-min, cycloidal drives guarantee absolute zero backlash gearbox under load, yielding < 10 µm positional drift.
• Thermal behavior: Planetary units run cooler at continuous high speed; cycloidal reducers generate more localized heat under shock loads but disperse it quickly.
• Size & weight: For a given continuous torque, planetary gearboxes are typically 20 % smaller and lighter. Cycloidal units, though slightly larger, handle intermittent overloads with longer lifespans.
• Maintenance & life: Planetary gears rely on optimized lubrication and periodic inspection; cycloidal drives’ minimal wear surfaces often allow sealed-for-life operation.

Precision planetary gearbox

• Best for: High-speed robotic joints, CNC rotary tables, spindle drives.

• Why: Superior efficiency at speed, compact form, sub-arc-minute accuracy and moderate shock tolerance.

Cycloidal reducer

• Best for: Heavy-payload robots, press feeders, indexing conveyors

• Why: Peak torque bursts, zero backlash under load, exceptional shock-load resistance and infinite reduction ratios in minimal stages.


Your selection hinges on whether your application prioritizes sustained high-speed performance and minimal heat (planetary) or extreme torque capacity with ultimate precision under intermittent, heavy loading (cycloidal).

• Low backlash, high-precision gearboxes for maintaining positional control in robotics, automation, and indexing applications.
• Compact, high-torque for achieving high output torque in small installation spaces.
• Precision planetary gearbox design for high-speed, low-noise operations.
• Cycloidal options for shock load precision cycloidal gearboxes designed to absorb the impact and reduce wear in harsh shock load applications.
• Norck Robotics expertise support guidance weaving from selection of the gearbox to implementation of a complete motion system.
