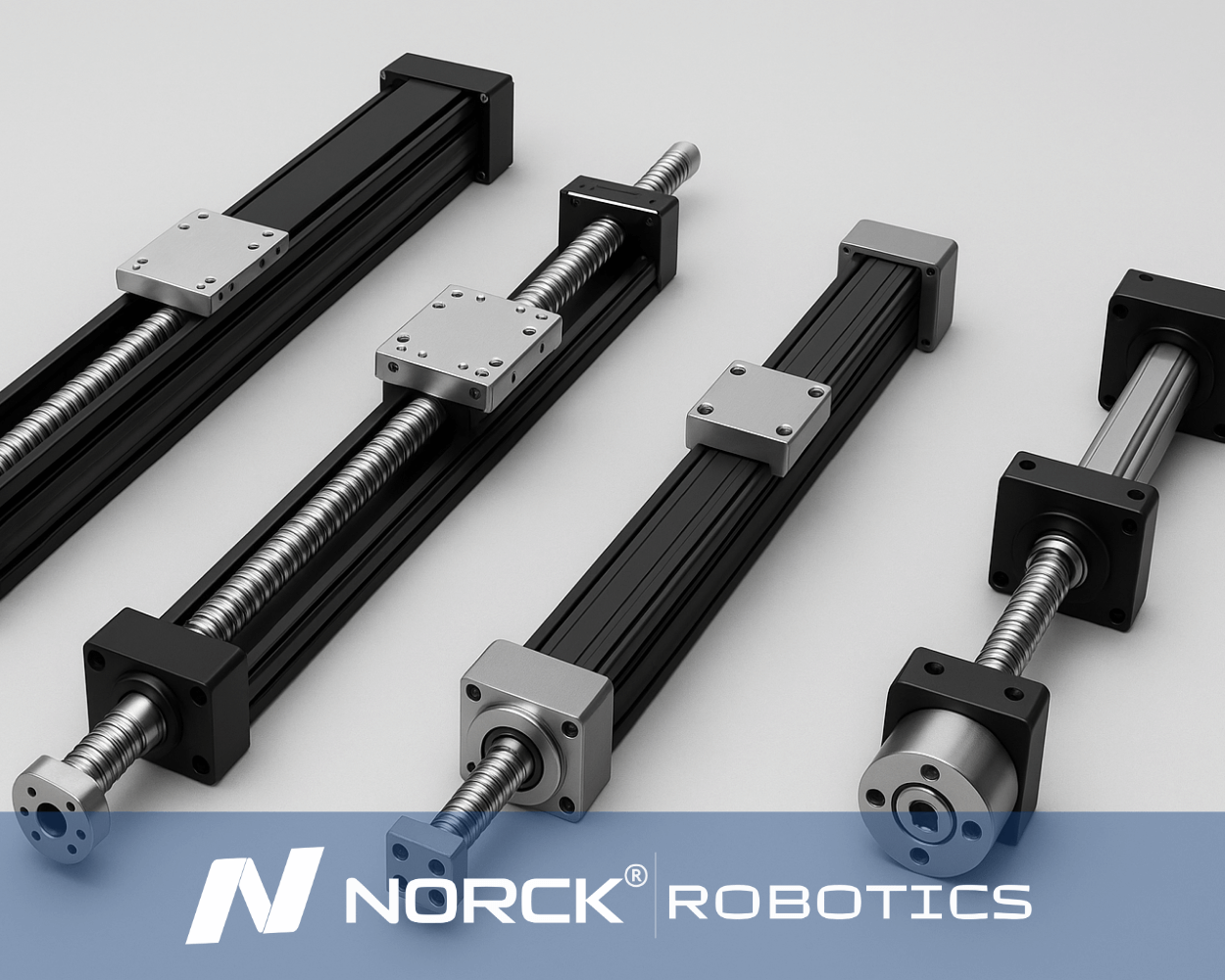

Ball Screw Driven Actuator

A Ball Screw Driven Actuator is a type of linear actuator ball screw that uses a ball screw mechanism to convert rotary motion into highly precise and efficient linear motion. Thanks to rolling contact between the balls and the screw shaft, these actuators deliver exceptional accuracy, high load capacity, and long service life, making them ideal for demanding industrial applications.

A Ball Screw Driven Actuator consists of a ball screw shaft, a ball nut with recirculating steel balls, and a drive motor (typically a servo motor or stepper motor). As the screw rotates, the balls roll between the nut and the shaft, allowing the nut to travel linearly with minimal friction and high mechanical efficiency.

The ball screw mechanism is designed to turn screws into linear motion. The threaded shaft is complemented either by ball bearings or the nut. The shaft is fitted with helical grooves aligning with the ball bearings housed in a nut. Thus, the rotation of the shaft allows ball bearings to roll in the grooves that thrust the nut along the length of the screw.

Consequently, this rolling action imparts less friction than the simple lead screw action; hence larger efficiency and smoothness of movement. Reversibly circulating along the return path, these balls are continuously fed into the nut without incurring significant wear. Ball screw systems are known for accuracy and load capability, thus well suited for accuracy applications.

As the screw is rotated, the amount of rotation is directly converted into linear displacement by the nut. Such mechanisms are widely used for producing reliable and controlled motion in machinery, robotics, and linear actuators.

Using ball screws has several benefits compared to using other actuation techniques in very precise applications. Perhaps the most important aspect is accuracy, as linear motion performed using ball screws is almost certainly more precise because of ball bearings rolling along the threaded shaft.

Therefore, this is an excellent task for applications requiring exact control like CNC machines or robotics. Another advantage of ball screws is the efficiency at which they could be operated with rolling ball bearings as opposed to traditional lead screws resulting in friction-free operations. This means that this method could be implemented even faster and would consume less power in contrast to other driving methods.

Ball screws also show tremendous low backlash, meaning there is little or no movement in nut and screw, even if the direction changes. Those very few movements help to achieve constant position accuracy. Such features also contribute to the higher carrying capacity and long-term durability and give long-life operation to ball screws. Therefore, it is an important choice for high-performance systems. Like many other linear motion solutions, they are relatively quiet.

Overall, they provide the benefits of high efficiency and precision at low maintenance levels.

CNC machines and high-precision automation systems necessitate components and tools that can provide consistent, accurate, and repeatable performance. These systems are designed to perform extremely complex tasks with an extremely high precision that requires components that meet certain special standards for stability, durability, and control.

Here is why they are ideal for CNC and high-precision automation:

• High Precision: CNC machines require exact movements, and any components used in these machines themselves must also perform at an exceedingly high level of accuracy. Precision parts such as linear guides, motors, and controllers must be maintained to a very tight tolerance so as to allow the end product to be within specifications.

• Stability: The machines working in high-precision applications must have stable structures to reduce vibrations, thermal expansion, and movement that affects the precision of processes. High-stability machines guarantee their accuracy in the long term, even in continuous operations.

• Repeatability: A CNC machine will perform an operation many times, and repeatability is a must for achieving uniformity in production. The components, including servos, ball screws, and high-quality spindles, ensure that every cycle is the same so that an equal output will be produced.

• Durability: CNC machines and automation systems are always subjected to heavy usage conditions; most times tend to work for long periods. Thus, parts must be made from some highly durable materials that can resist the wear and tear of continuous operation over time without affecting performance.

• Control and Integration: High-precision automation systems are tightly integrated with each other (motors, controllers, and sensors) to make possible accurate movement and processing. A CNC system designed aptly will ensure that such parts communicate smoothly, allowing extremely fine control over the movement and processing.

• Efficient: The above systems are engineered mainly concerning throughputs and minimum errors, as high-quality components with tight tolerances and minimal play should ensure that CNC machines and automation systems are more rapid and accurate-output, thus preventing overall productivity depletion due to scrap.

• Closed: Modules of CNC applications and high-accuracy automation systems have to show reliability, precision, and durability, as they require high-efficiency and constant operation through complex manufacturing environments.

Comparative analysis of ball screw and other screw mechanisms, like lead screws, would require one to analyze input relevant to their efficiency, precision and applicability.

Efficiency:

• Ball Screws: Ball screw is almost a hundred percent efficient because it uses a ball bearing rolling between nut and screw, thus having least friction and very high efficiency, less wasted energy in the form of heat, and much lower effort to be applied through driving.
• Lead Screws: Lead Screws create direct sliding between the nut and the thread of the lead screw. Though they generally have a higher thrust capacity, there is considerable friction resulting in lower efficiency when it is loaded or speed increased.

Precision:

• Ball Screws: Ball screws are recognized for their extreme precision; they are suitable for applications requiring close tolerances. The rolling nature of the balls minimizes backlash while at the same time providing smooth continuous motion.
• Lead Screws: Sometimes lead screws can give good precision, but they have more backlash because of nut sliding friction against screw; therefore, it is not so precise to some applications, especially at relatively higher loads or direction changes.

Load Capacity:

• Ball Screws: The load-carrying capacity of ball screws is higher because it carries the load along rolling surface at number of contact points; therefore, these ball screws can be used in heavy applications that also need high force.
• Lead Screws: Because fewer points of contact bear the load, lead screws are of lower capacity as compared to ball screws.

• High Force and Accuracy: Optimized screw pitch and nut design for smooth and consistent linear movement.
• Robust, Low-Maintenance Design: Designed to withstand extreme and consistent cyclic loads.
• Built-in Reliability: Each ball screw linear actuator is tested for alignment, load carrying and accuracy.
• Expert Services from Norck Robotics: If you need assistance with selection, integration or performance tuning, our experts are happy to assist.
• Variable Stroke and Mounting Options: With many configurations to consider for your mechanical and spatial customization.
• Common Motion Control Interfaces: Compatible with servo, stepper, hybrid motor systems.
