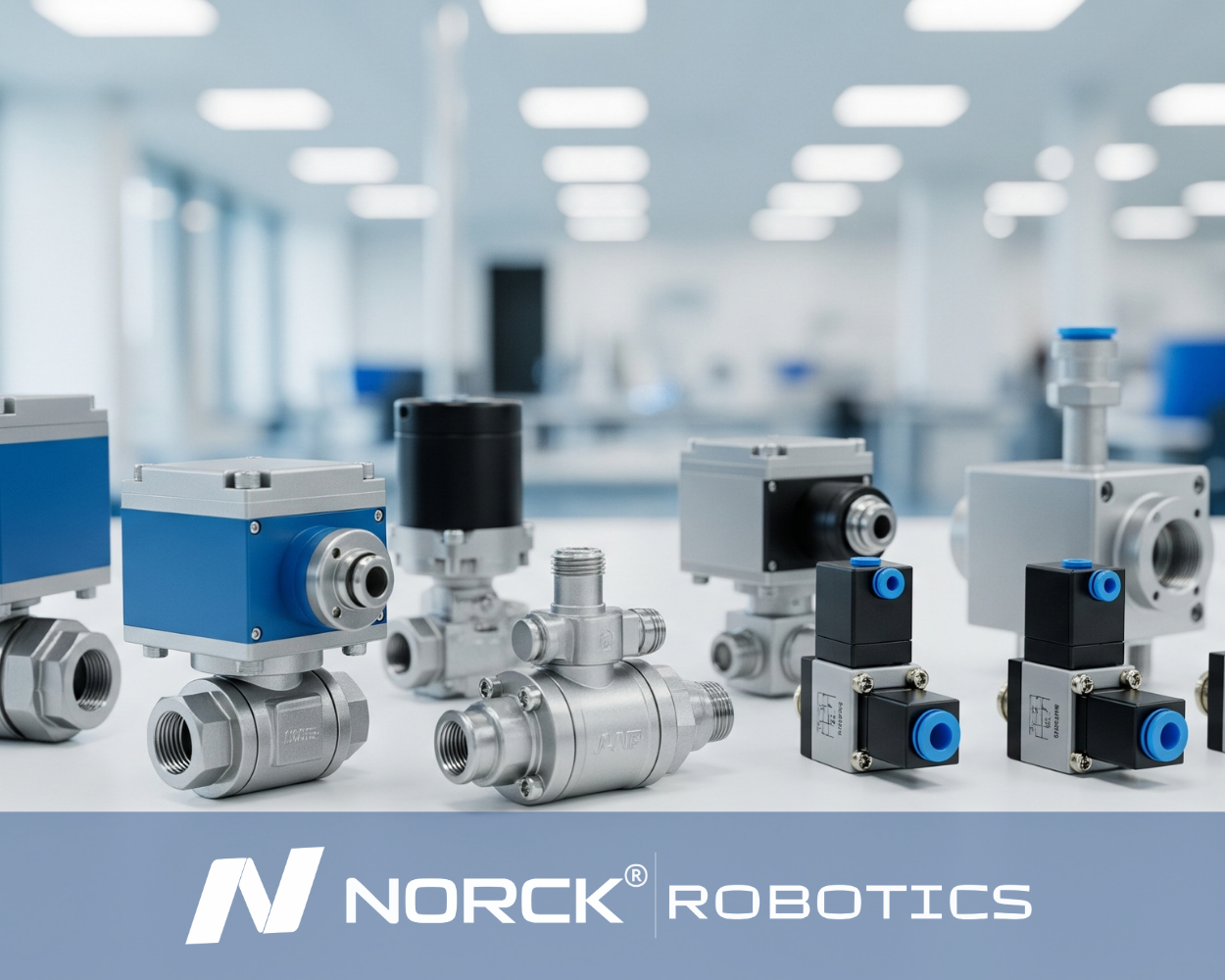

Miniature Valve Actuators | Compact, Reliable Drive

A miniature valve actuator is a small-sized device designed to open, close, or finely regulate the flow through small valves, particularly in space-restricted systems. It had applications in microfluidics and biomedical engineering, where piezoelectric or solenoid-based action ensures fast reaction times with low power consumption. Such actuators are principally needed for precision tasks in lab-on-chip actuators requiring reliable fluid control. Their small size, low energy consumption, and precision enable them to be integrated into portable automated systems for use in diagnostic analysis and point-of-care testing devices.

A miniature valve actuator precisely opens, closes, or throttles micro-valves to steer very small liquid or gas volumes. By delivering repeatable flow rates and timing with minimal heat or vibration, it enables reliable mixing, dosing, and routing in lab-on-chip and other microfluidic systems.

Several advanced technologies are used to actuate miniature valve actuators, depending on the precision, size, and power requirements of the application. These actuation technologies enable stable fluid or gas flow control in small systems such as lab-on-chip devices. The following are the most common technologies:

• Piezoelectric: Nanometre deformation under voltage → µs-level response, nW–mW power.
• Solenoid: Electromagnetic plunger → robust, low-cost on/off switching (5–24 V).
• Thermal/Bimetal: Resistive heating expansion → simple electronics, ideal for disposable chips.
• Electrostatic (MEMS): Charged micro-plates → ultra-small footprint, µW power, no coils or magnets.

• Ultra-compact – Optimized for extremely tight spaces, yet still provides great torque and accuracy.
• Vertically integrated production – CNC machined, custom surface treatments, and clean-room assembly, never leaving the facility.
• Tight sealing control – Smooth, backlash free actuation, allows for precise control of flows.
• Configurable options – Configurable torque, voltage, mounting, and interfaces to help fit your system.
• Durability – Each actuator is life-cycle tested for heavy cycling and/or extreme applications.
• Chemical and thermal resistance – Select media and coatings for severe media and temps.
• Global formation – Norck Robotics provides engineering support and spare parts in North America, Europe, and Asia.

Small size and low power are critical for miniature valve actuator and lab-on-chip actuator applications because these systems are designed to operate within extremely compact, energy-sensitive environments. The ability to integrate actuators into tiny spaces without adding bulk or complexity is essential for portable and high-density devices.

• Space-Constrained Design: Many applications, like lab-on-chip devices, have very limited space. Miniature actuators fit seamlessly into microfluidic layouts without interfering with function.
• Battery or Portable Operation: Low power consumption supports use in handheld or wearable diagnostic tools that rely on batteries for energy.

• Thermal Stability: Less power means less heat, which is important in biochemical or medical processes where temperature may impact reactions or sample integrity.
• Scalability: Small, low-power actuators allow it to be more convenient to have multiple control points within a single compact device.
• Cost and Energy Efficiency: Running on minimal power saves energy costs and enables simpler power systems in the overall design.

Miniature valve actuators are used primarily in highly specialized platforms where compactness, precision control, and reliability are essential. These include:

• Microfluidic Systems: Actuators regulate the flow of fluids through tiny channels for operations like mixing, separation, and chemical reactions in a controlled microscale environment.
• Lab-on-Chip Devices: Incorporated into miniature diagnostic systems to perform fluid handling operations like sample delivery, reagent mixing, and waste removal - essential in medical diagnosis and point-of-care testing.
• Portable Analytical Instruments: Employed in field-useable instruments for environmental monitoring, food safety testing, and biochemical analysis where accurate fluid control is required in limited space.
• Biomedical Devices: Enable automated dosing, drug delivery, or cellular manipulation in research equipment and therapeutic devices.
