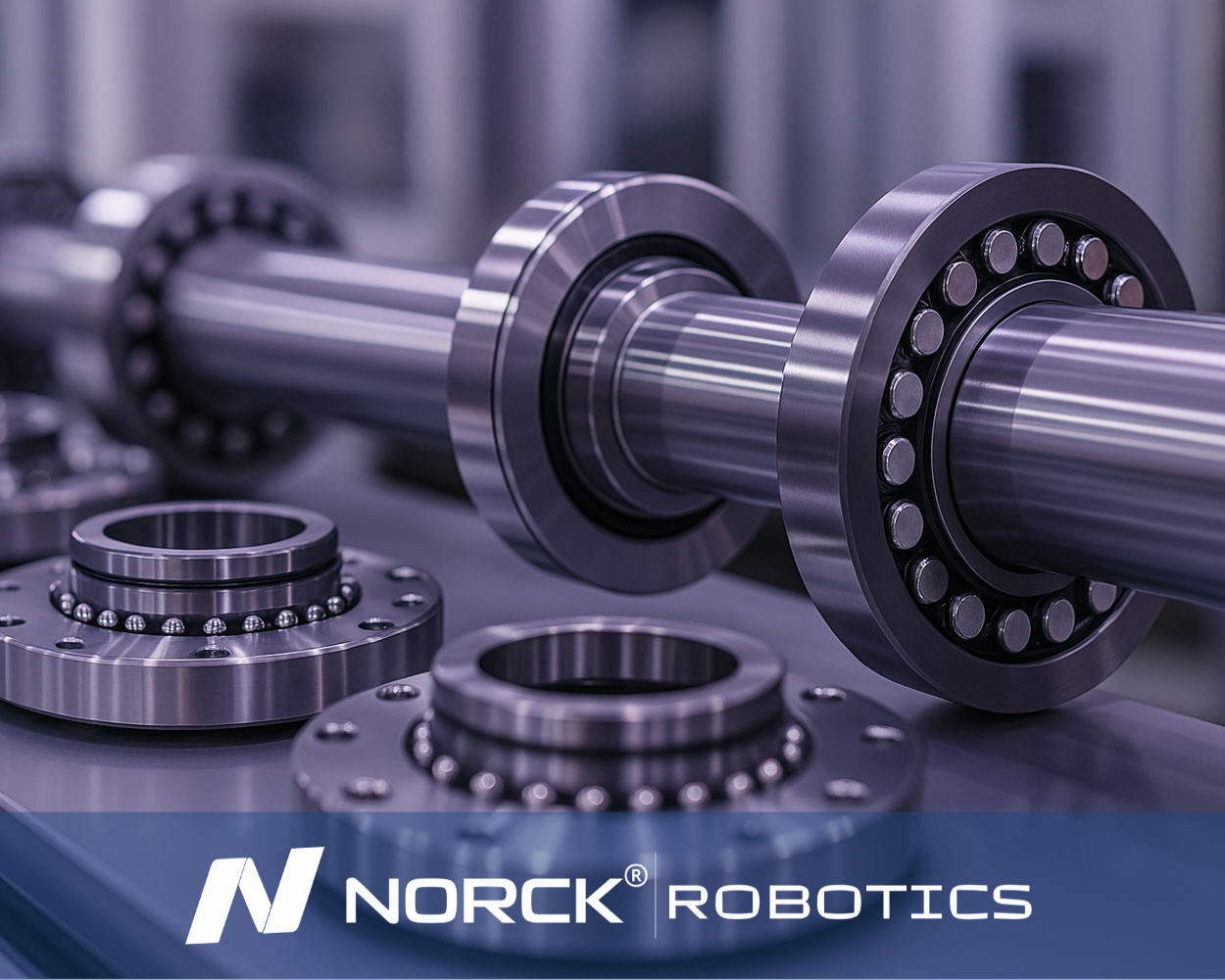

High-Precision Bearings | Ultra-Smooth Rotation

One of the high-precision bearings is applied to robot joints for reducing friction, supporting different types of loads, and allowing smooth and accurate movements. These bearings are made up of precision ball bearings that could be radial or angular contact types and roller bearings that could be cylindrical or tapered. Crossed roller bearings are also important in applications requiring heavy load and moments of complex nature and hence for demanding robotic uses. Usage of such high-speed precision bearings is limited and so even Japanese manufacturers claim that their performance depends on classifications of precision, i.e., ISO P5 or P4, and the materials used such as stainless steel and ceramic, which affect the life, corrosion resistance, and operational accuracy of the bearing.

ISO P5 and P4 bearing precision classes offer standardized ratings of bearing manufacturing accuracy and performance. These classes are essential to robotics and high-performance machinery where precision, smoothness, and repeatability are needed.

Tighter Tolerances

• ISO P5 and P4 have dimensions with tighter tolerances than general-purpose bearings (e.g. P6 or normal class).
• Tolerances for ISO P4 and P5 bearings minimize mechanical play and facilitate exact alignment of robotic components in repeatable motion applications.

Reduced Runout and Vibrations

• Bearings with lower quality than ISO P5 and P4 will have a higher incidence of runout. Less runout means less wobble, when the bearing turns at high RPM.
• Lower runout results in improved motion profiles which is critical for applications with high-resolution sensors or with precision ball bearings in lightweight and delicate assemblies.

Faster Speed Potential

• The improved tolerances for internal geometry allow these types of bearings to run at higher speeds with less friction.
• This leads to smoother motion at high speeds which is needed for fast-moving, dynamically controlled robots.
• Faster speeds makes thermal buildup less of an issue and excess heat is not a problem during the normal operation of a continuously running robotic joint system.

Application Relevancy

• P5: Used for industrial robotics, CNC machinery or any machinery (controllable), and medium performance systems.
• P4: Used for ultra-precise systems like a crossed roller bearing in surgical robots or aerospace gimbals.

Using the right class, system engineers and designers can achieve the right balance of performance, price point, and reliability for their targeted applications.

Bearings for robot joints contribute to smooth, efficient, precise operation of robotic systems. Their key operate with:

• Friction Underpinning: Bearings greatly minimize that friction between two moving components to enable smooth movement on joints and lessen wear and energy losses.
• Bearing Various Loads: These loads may be radial, axial, or moment types so that stability and structural integrity can be maintained under stresses they will undergo during operation.
• Tasks Requiring Precision and Accuracy: High-precision bearings (such as precision ball and crossed roller bearings) give control to motions requiring high accuracy, assemblies, inspection, or surgical robotics.
• Increasing Life and Durability: By minimizing metal-to-metal contact and efficiently distributing loads on surfaces, bearings enhance robot joint life unless very fast or under heavy loads.
• Reduce Vibration and Noise Level: Bearings in their own right also aid in noise attenuation and vibration, thus improving overall robot performance and user comfort.

Depending on the load requirements of the application, the accuracy requirements of the joint, and the space constraints, different types of bearings may be selected for robotic joints. The following list indicates when each type of bearing will be selected at the joint.

1. Ball Bearings (Radial & Angular Contact)

Ball bearings may be selected with: Low to moderate loads, high speeds and low friction are important.

Applications: General use robotics, electric motors, and joints requiring smooth continuous rotation.

Precision advantage: Precision ball bearings have excellent rotational accuracy and should be considered when building compact joints.

2. Roller Bearings (Cylindrical & Tapered)

May be selected when: High radial loads or combined radial and axial loads are significant, and portions of the operation require moderate speeds.

Applications: Heavier duty robotic arms, heavy duty industrial manipulators, and gear boxes.

Durability advantage: Greater surface contact enables the roller bearings to withstand substantially higher forces during service with a lengthened service life.

3. Crossed Roller Bearings

May be selected when: Very high precision, stiffness, and performance loading (axial, radial, and moment all at once) are all of greater value or of importance.

Useful for: High precision bearings used for robotics wrists, hands, rotary stages, medical robots, vision guided systems, etc.

Space savings: Crossed roller bearings are compact and can accept multi-directional loading with minimal space.

Each type of bearing has some advantages and disadvantages with respect to load capacity, precision, size, and speed of rotation and understanding the best type for the application you are designing for is essential to the optimum performance of your robot.

• Low-friction performance: Designed to minimize energy loss and heat build-up for smoother motion control.

• Precision roller bearings: Proven at high-loads and high speed; built for durability, reliability and accuracy.

• Custom precision bearings: Grooved, radial/ angular contact bearings, or thrust; we can fit unique sizes, materials and load conditions.

• Designed for critical motion performance systems: Implemented and trusted with applications across a wide range of industries including; robotics, aerospace, automation and medical equipment.

• Thermal and wear resistance: Designed using advanced materials and coatings to survive uncontrolled environments.

• Vertically integrated manufacturing: Provides complete in-house control of the workpiece from the machining process to the finished testing stage.

Materials choice essentially impacts the performances, durability, and application suitability of high-precision bearings used in robotic systems. Here's how stainless steel and ceramic materials affect the performance qualities:

Stainless Steel Bearings

• The stainless steels resist corrosion and hence are suitable for humid, washdown, or chemically exposed environments.
• They offer good strength and durability and are best suited for general robotics and industrial use, where both load support and lifespan are important considerations.

Ceramic Bearings

• The ceramic materials (usually silicon nitride) are lighter, harder, and more temperature-resistant than steel.
• These bearings suffer lower friction, making high-speed operation and less wear possible-ideal with precision ball bearings suitable for cleanroom, vacuum, or aerospace applications.

Hybrid Bearings (Steel Races + Ceramic Balls)

• Combining stainless steel races and ceramic balls produces both durability and rolling resistance.
• They suit well in high-speed and high-precision applications, such as robotic ones, where reduction in thermal expansion and downtime is paramount.

Impact on Sound and Life

• Ceramics make for quieter operation and tend to last longer because of less friction and wear.
• Stainless steel bearings, on the other hand, might come with a little noise but are still a tough and economical way to solve many automation platform-their issues.
