Heavy-Duty Robots and Structures

Heavy-Duty Robots and Structures are industrial robotic systems and mechanical frameworks designed to handle very high payloads, extreme forces, and harsh operating conditions. They are essential for applications that require strength, durability, stability, and continuous operation in demanding industrial environments.

Heavy Duty Robots are industrial robots engineered for high load capacity, long reach, and robust performance. Heavy-Duty Structures refer to the reinforced frames, bases, gantries, and support systems that ensure rigidity and stability under heavy loads and dynamic motion.

These systems are typically built using high-strength materials, precision manufacturing, and safety-focused mechanical design to maintain accuracy and reliability even under extreme stress.

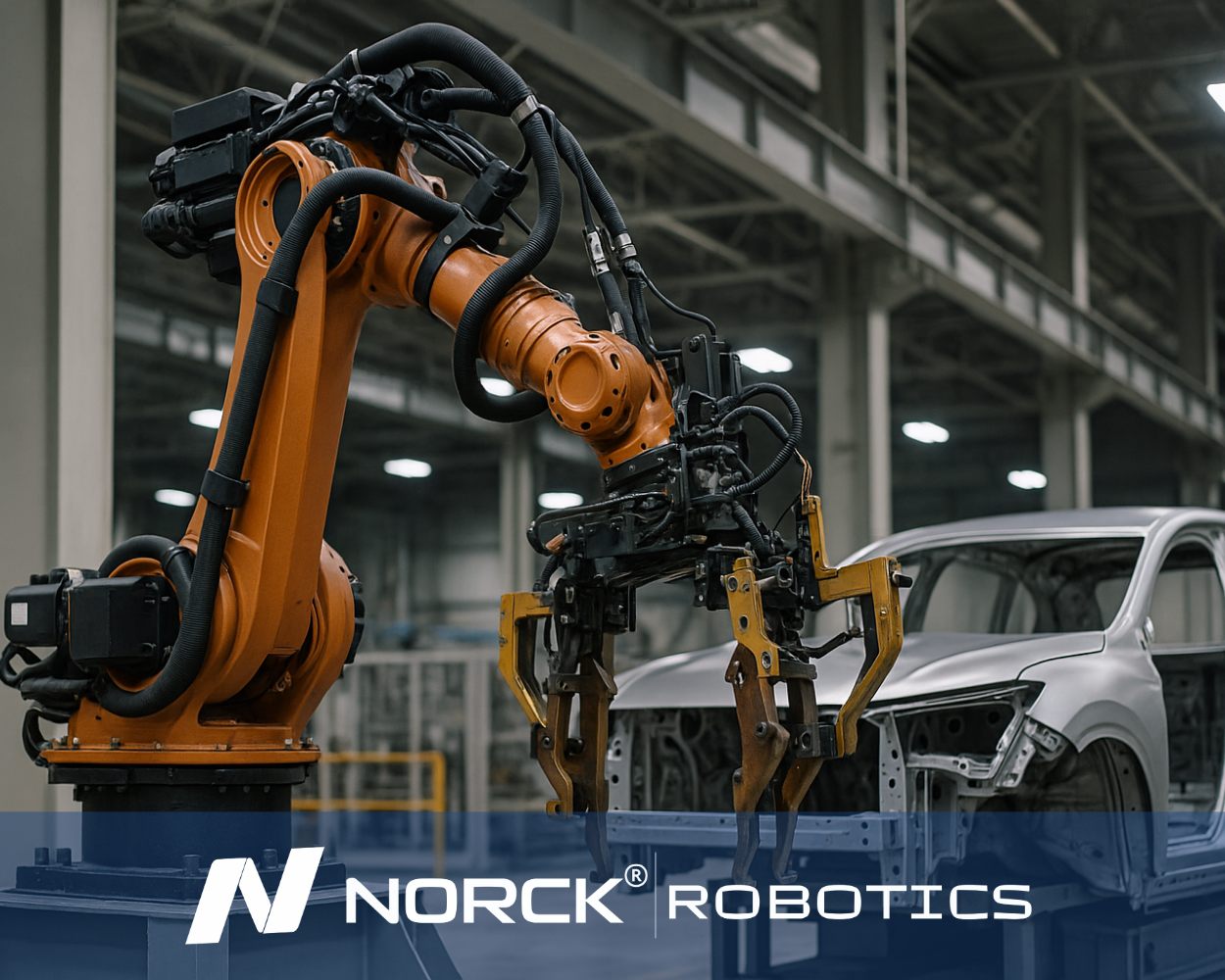

High-payload, heavy duty robots are typically deployed in automotive production systems due to their ability to manipulate larger, heavier components (e.g., engine blocks, vehicle frames, and entire assemblies). These robots enable fast-cycle production operations where weight and repeatability are of primary importance since both criteria could be barriers to entry for continued implementation. These robots streamline throughput and eliminate manual labor, reducing injury risk among heavy lifting or assembly activities.

• Engineered for high-load applications: Making them ideal for handling large automotive components such as chassis, engines, and structure.
• Support faster cycle times: Allowing operation at high frequency without sacrificing the level of accuracy.
• Reduce human error and fatigue: Automating repetitive heavy-lifting applications that would otherwise require two or more people.
• Customized end-effectors: Customized with tool changers or grippers specific to common automotive components.
• Very important for body-in-white (BIW) and powertrain lines: Where structural  alignment is critical and weight can be a factor.

Designing structural bases and fixtures for large heavy-duty robots found in automotive manufacturing requires special engineering to ensure stability, precision, and durability. The structures must be designed to absorb the high dynamic loads, meet all the challenges of vibrating, lightweight static, and dynamic loads applied to the design due to high payload transfer and repetitive motion without deforming or changing alignment. The stability ensures it can operate correctly and, where precision work is essential, maintain accuracy and repeatability.

• Material strength: Heavy-duty steel or reinforced materials suitable for high static and dynamic loads.
• Vibration dampening: Robust base support or rigid reinforcement with a vibration damping system is designed to absorb all vibrations from robotic rapid travel.
• Precision alignment: The mounting surfaces are machined to tolerances to ensure accurate positioning of the robot, and consistency when doing individual tool paths.
• Anchoring and support: Fixtures must be anchored securely to the factory floor and they may require custom reinforcements to add stability.
• Subsystem adaptability: Designed with modularity to accommodate tool changes, future upgrades, or future variation to line configurations.

Under structural design conditions, the proper design of robotic bases and fixtures is essential to the stability and accuracy of heavy load operations in automotive manufacturing. A properly designed support structure provides an anchor location for the robot to stabilize its position and maintain the operational path, regardless of performing transport operations or manipulating large, high-mass parts at velocity.

• Stable anchor: Rigid, high-mass bases resist movement and tipping forces and provide a solid anchorage location to repeat the operation.
• Minimized deflection: Proper structural design reduces flexing or deformation under loading conditions and maintains accuracy at the part positioning and handling point.
• Operational vibration control: Damping materials or rigid joints can absorb operational vibration, which otherwise would adversely affect precision or working life of the equipment.
• Accurate tool path performance: The alignments of fixtures, or reference surfaces, leads to accurate performance of heavy duty robotic arm where precision is key in an in-process operation (e.g. welding, assembly, or inspection).
• Consistent repeatability: Stable designs assure mechanical consistency through time while minimizing the need for recalibration or realignment.

• Structural integrity: Optimal materials and appropriate reinforcement strategies to minimize load deflection and vibration.
• Modular geometry flexibility: Configured and scaled to meet required payloads, environments, and robotic platforms
• Heavy-duty joints and frames: Designed for controlled motion and high operating life.
• Custom integration options: Compatible with a large catalogue of actuators, drives, and sensor technologies.
• Norck Robotics design collaboration: Support through simulation, modelling, and specific engineering development.
• High-load robotic systems tested for extremes: High-load robotic systems based on performance in extreme environments and conditions.
