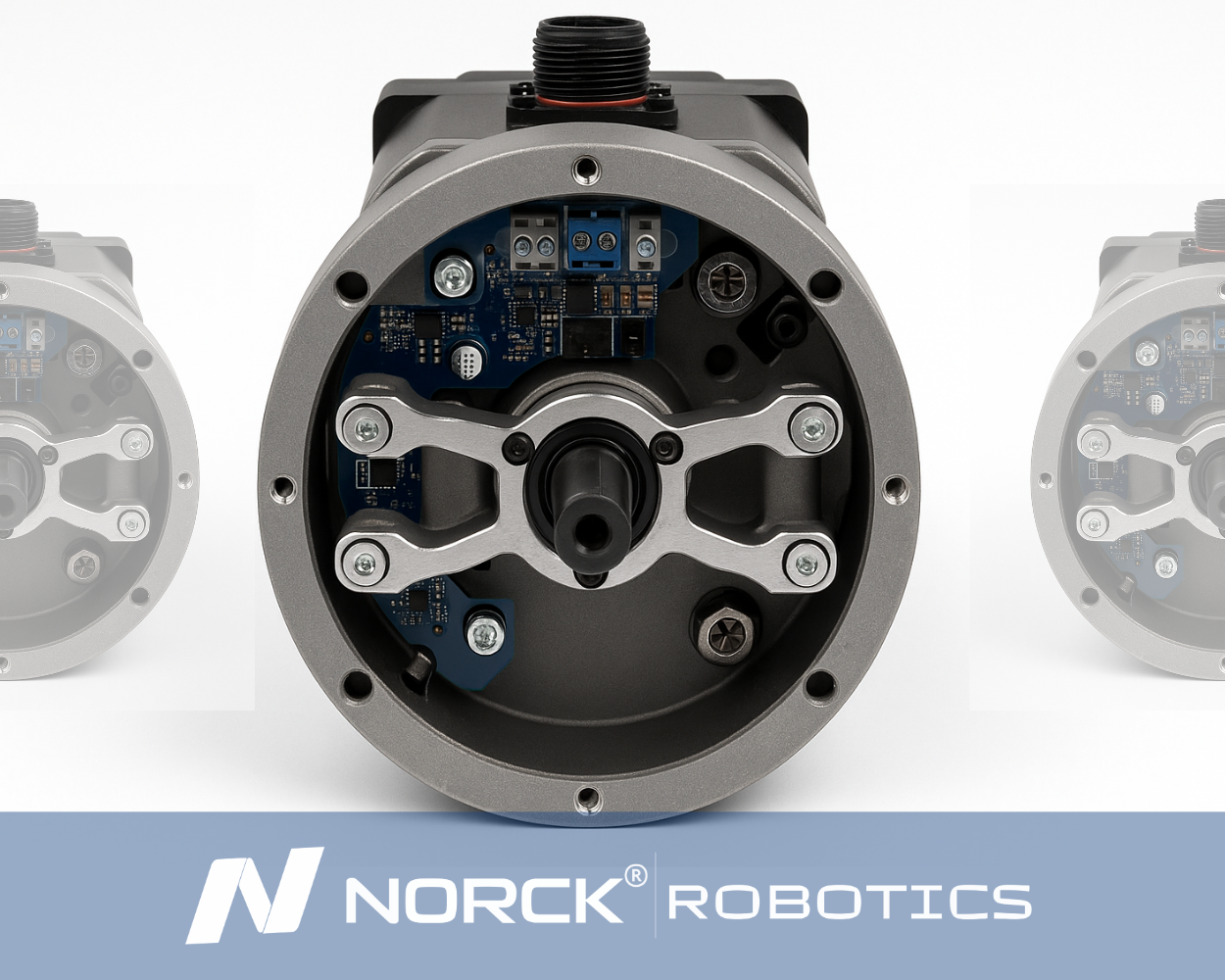

Universal Robotic Joints | Plug-and-Play Kinematics

Usually, universal robotic joints used as a robot joint actuator consist of a two-axis revolver mechanism, allowing for a combination of smooth rotating about multiple axes beyond those that can be had building two-axes-of-motion robots and motion platforms. The joints are equipped with high precision bearings and either a reduction mechanism like a gearbox to achieve accurate and stable motion even in a small universal joint configuration. Universal joints are used mostly in industrial robotics while welding and assembling; they need to be very robust, repeatable, and able to withstand long hours of continuous operation. Universal robotic joints provide a base layer of flexibility into a highly articulated and adaptive mechanism.

Universal Robotic Joints are essentially mechanical components designed to provide rotational motion in multi-directions, most classically around two axes. They act as the critical building blocks of both multi-DOF robotic arms and platforms, providing construction flexibility and precision.

The primary function of Universal Robotic Joints is to import articulated motion between connected segments to perform complex operations such as welding, assembly, or inspection.

By allowing these movements, they ensure smooth and controlled motions in industrial robots equipped with bearings and gear mechanisms ensuring stability and repeatability.

Commonly, robotic universal joints employ two axes of motion and are therefore known as two degrees of freedom. A simplified explanation of the two axes is given below:

• Yaw-Axis Rotation Movements:

It has to do with rotation of the joint left and right along the horizontal axis for the robotic arm much like the head turning sideways. It helps the robot to position itself around an object.

• Pitch-Axis Rotational Movements:

The arm tilts backward and forward as if nodding. This makes the arm reach up or down to interact with items at a certain height or angle.

Combining these two movements, the robot has a flexible range to actually move and precisely position tools or grippers.

• Multi-axis motion: Provides fluent, controlled movement across multiple rotational planes all at once.
• Modular design: You can design your robot joint actuator systems to accommodate a variety of payloads and arms designs.
• Compact, but strong: High torque density but small footprints to allow into tight spaces.
• Integrated feedback/control design: Built-in encoders and other feedback options to provide responsive, real-time position data for motion control.
• Entire inhouse engineering team: All universal robotic joints are designed, machined, and assembled in a controlled work environment.
• Field proven reliability: Our joints have been trusted to operate in automation settings where long-duty cycles, and minimal maintenance activities are realities.

Considered multi-DOF robotic arms or platforms will utilize universal joints as they permit a high degree of flexibility and complex motions. Here are some ways of employment:

• Stacking multiple Joints: It is common to chain multiple universal joints, with each joint adding its own Degrees of Freedom (DOF). The resultant robotic arm moves in a host of directions, such as up/down, left/right, and can rotate or twist.
• Articulations: When motors and gears are added, universal joints become articulated structures that work pretty much like a human arm or leg. Every joint adds to the motion and range of each articulation.
• Medium to High Precision Control and Range: In applications such as welding, painting, or assembly, multi-DOF robotic arms are needed to achieve complex operations. Universal joints provide the sort of precision required since they have several pivot points.
• Configurability: The designer may also choose how many joints there will be and what sort of motion each one will offer, thus enabling the designer to configure a robot's capabilities for a task-whether that task entails delicate laboratory work or grinding manufacture.

Hence, simultaneous inclusion of these universal joints in a robotic system elevates the flexibility while providing control over other industrial and exploratory applications.

Universal Robotic Joints are very much suited for any application where flexibility, repeatability, and motion control are considered. Some of the more common applications include:

1. Making a Custom Robotic Arm

In industrial and academic environments, these joints are well suited for making custom robotic arms. Their modularity ensures that a designer can come up with any multi-DOF design that fits the motion and payload needs.

2. Research and Prototyping

In the R&D laboratories, usual joint mechanisms are an oft-used solution to run experimental hardware while testing out a new motion algorithm or AI-driven control system. Their flexibility and ease of adjustment make universal joints ideal for the prototyping and testing phases of new ideas.

3. Educational Robotics

They are often used at the university level, including in robotics kits and platforms, for teaching and training due to their reliability and ease of use. Students use universal joints and kits primarily to study kinematics and joint coordination in real robotic systems.

4. Industrial Automation Platforms

In proving grounds of industry, these joints enter into the robotic arms for assembly, welding, painting, and for the other tasks of material handling and manipulation. Repeatable and reliable motion is necessary when using this joint among other motion devices in an automation cell.

Universal robotic joints usually contain several internal mechanisms that provide smooth, controlled, and accurate movement. These mechanisms are vital for achieving performance, durability, and repeatability:

1. Precision Bearings

A precision bearing allows a robotic joint to rotate smoothly while carrying a load. They minimize friction and mechanical abrasion, which leads to enhancement in accuracy and the operational lifetime of the joint. Such bearings are especially important in industrial environments where the robot will carry out repeated or continuous operations.

2. Gear Reduction Systems

These are gearboxes that reduce the speed of the motor while increasing the torque output; these are planetary or harmonic drives. The important part of these applications is that they encourage the robot to move with increased power or increased accuracy. Slow-motion or fine controlled movements, perhaps by lifting the weight easily and without jerking or any sudden jerks, are the basis of gear reductions.

3. Integrated Sensors

Universal joints might have torque or force sensors to help the robot sense resistance or pressure while operating. These sensors are useful for delicate manipulations, collaborative robots, or surgical applications where safety and control are important.

4. The Coupling and Flexible Transmission Elements

These flexible couplings or belt drives link motors to joints, permitting a slight misalignment and damping vibrations. They serve to protect the system from shocks, allowing smoother and more reliable operation of the system, particularly for dynamic and lightweight robotic platforms.
