A linear actuator converts a power source—electricity, pressurised fluid, or compressed air—into straight-line motion. Instead of spinning a shaft, it pushes or pulls along one axis, which lets robots lift, clamp, position, or press with repeatable accuracy.
Direct translation (no rotary-to-linkage losses) gives tight positioning tolerances.
Compact, sealed housings fit inside arms, grippers and medical devices.
Digital or analogue feedback (encoders, Hall sensors) enables closed-loop control for < ±0.05 mm repeatability in many models.
Most electric units pair a motor with a power-screw:
Cost-effective, moderate friction, good for 40–60 % duty cycles.

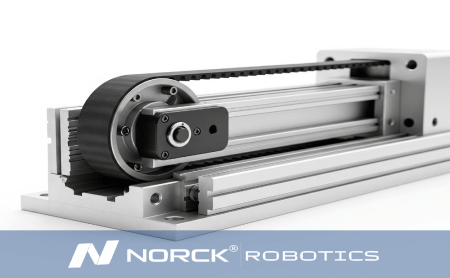

faster strokes over long travel, lower stiffness.

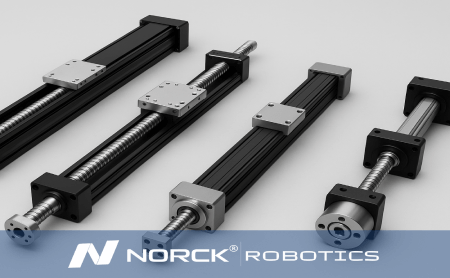

Recirculating balls reduce friction → higher efficiency, longer life.

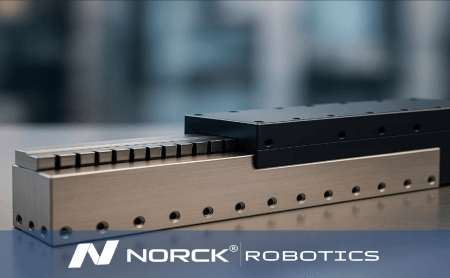

No screw at all; direct electromagnetic thrust for ultra-smooth micron-scale moves.
A nut travels along the screw (or the carriage along the rail), turning rotary torque into linear thrust. Integrated limit switches or magnetic sensors stop travel at stroke ends.
10–30 mm Ø, < 150 g
50–150 mm Ø, 2–30 kg
10–100 mm, 5–300 N
50–1000 mm, 1–15 kN
Up to 1 µm with fine pitch screw
10–50 µm typical
Surgical tools, camera focus, lab automation
AGVs, palletisers, aircraft flaps
Coreless DC, stepper
Brushless DC, hydraulic, pneumatic
Mini units prioritise footprint and delicacy; macro units prioritise load capacity and rugged housings.
travel distance + safety margin (~10 %).
12 / 24 V DC, 48 V DC, or hydraulic supply; verify current draw and controller compatibility.
cycles per minute; check screw pitch vs motor RPM.
choose ball-screw or linear guide for < 0.02 mm play.
% of time under load; affects motor and screw life.
analogue potentiometer, incremental encoder, or absolute encoder based on system requirements.
dust, wash-down, radiation, temperature extremes.
static + dynamic forces; include 25–50 % safety factor.
